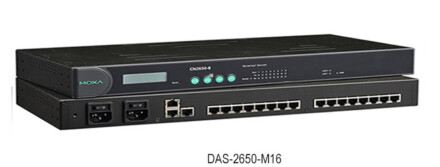

DAS-2650-M
Rack mount  Network Serial Server
8 or 16 ports RS422/485
 Part Numbers
DAS-2650-M8
8 Port  Network Serial Async Server
(RS-232/422/485)
DAS-2650-M16
16 Port  Network Serial Async Server
(RS-232/422/485)
DAS-RJ45M9
8 pin RJ45 to male DB9 connection cable, 150cm
 Specifications
Box size 440 x 198 x 45 mm
 (17.3 x 7.8 x 1.77 in)

Main Features
Stand-alone Remote Access Server
  • PPP/SLIP with RADIUS authentication and RIP I/II Routing protocol
  • Real COM/TTY driver for Windows and Linux
EthernetDual-LAN 10/100 Mbps with two independent MAC addresses and IP addresses
Serial 8 or 16 port RS-422/485
DAS-2650-M8    Price: 1.160  Euro
Add to Chart
DAS-2650-M16  Price: 1.500  Euro
Add to Chart
DAS-RJ45M9   Price: 8  Euro
Add to Chart
The DAS-2650-Mxx  provides an easy console management solution in a convenient 1U rackmount package. With its RS-232/422/485 ports, connections are easily established to the console ports of network equipment, such as Unix servers or routers, for centralized management of the attached devices. Each device‚Äôs RS-232 console port becomes a network-accessible node, giving users Telnet access from anywhere on the network for configuration and management of the device. Full modem control signals are supported, ensuring compatibility with a wide range of serial peripherals.
The DAS-2650-Mxx has two separate LAN ports that can be connected to separate LAN networks. Dual-LAN redundancy involves setting up two separate physical networks to connect the PC host with the DAS-2650-Mxx.
