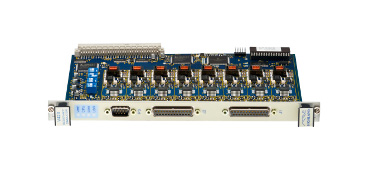

DAS-V4201 - dastor

Go to content
PANEL INTERFACES > BOARDS
 Part Numbers
DAS-V420-1
-  8-channel, isolated, wide-range,
    resistance simulator
DAS-8V420-1
- 8-channel, isolated, wide-range,
  resistance simulator
- Special configuration
 Specifications
Board Type
VME 6U
Range
Four programmable resistance ranges from 5 ohms to 65.5 Kohms
Cooling
 -10/+60°C.
DAS-xV420-1
8-channel, isolated, wide-range, resistance simulator
DAS-V420-1    Price: 5.020  Euro
Add to Chart
DAS-8V420-1  Price: 5.500  Euro
Add to Chart
  • 8-channel, isolated, wide-range, resistance simulator
  • Four programmable resistance ranges from 5 ohms to 65.5 Kohms
  • Suitable for simulating strain gages, load cells, resistors, platinum/copper RTDs, thermistors.
  • Users may directly program resistances or RTD simulation (copper or platinum) temperatures
  • Fast, resistance value programming
  • Any channel is switchable to front-panel calibration check connector for in-system test without disconnecting field wiring
  • Simple register based VME interface with no handshaking required
  • Optional built-in self-test (BIST) and mil/COTS versions available
  • Optional termination panels and bridge completion boards available
