DAS-BPMC
Single or Dual Adapter for PMC Mezzanines
The DAS-BPMC adapters allows you to your PMC with a new PC. The new PC´s have PCI Express connectors in larger quantities than PCI slots.

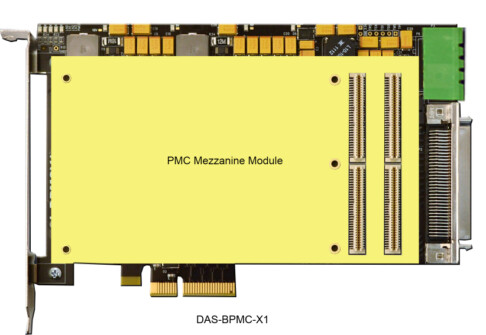

The DAS-BPMC-X1 ( PCIe Bridge PMC 1 slot) adapter / carrier converter card provides the ability to install one PMC card into a standard PCIe (Express) 4 lane slot. Suitable for PCI or PCI-X operation with the PMC; 32 bit or 64 bit data and PCI (25, 33, 50, 66) or PCI-X (50,66,100,133) MHz. clock. Auto selected or switch programmable speeds. The bridge can operate with 1, 2, 3 or 4 lanes active, and can be installed into slots with more than 4 lanes if desired.

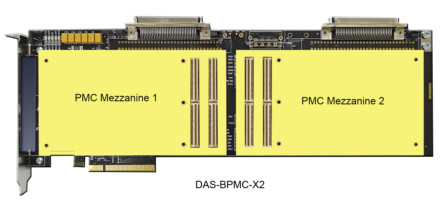

The DAS-BPMC-X2 ( PCIe Bridge PMC 2 slot) adapter / carrier converter card provides the ability to install two PMC card into a standard PCIe (Express) 8 lane slot.
| Part Numbers | |
DAS-BPMC-X1 | Adapter PCIe to PMC Mezzanines |
DAS-BPMC-X2 | Adapter PCIe to 2 PMC Mezzanines |
| Specifications | |
| Board size | DAS-BPMC-X1: Half size PCIe Card DAS-BPMC-X2: Full Length PCIe Card |
| Bus | DAS-BPMC-X1: PCIe 1-4 lane interface DAS-BPMC-X2: PCIe 1-8 lane interface |
| I/O Interface | XMC Bezel IO supported at PCIe bracket. Jn4 / Jn6 "user IO" supported with either SCSI or DIN connectors at both positions. See Panduit for mate [120-964-455] or standard SCSI II connector. |
| Interrupts | PCIe MSI interrupt scheme is supported |
| Voltage | Local Power Supply for 3.3, 5 and -12V Operating from System +12V |
Specification | XMC, PCIe specification compliant |
