DAS-RTMVME
Price: 560 Euro

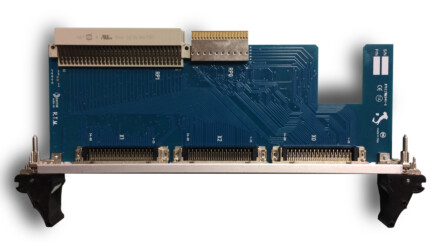

VME - Rear Transition Module
DAS-RTMVME is the main interface for mostly of our “Interface Panels” I/O solutions.
The VME-64 bus architecture define that the upper connector called P1 (160 pin DIN-41612-Expanded) is used for the “bus-addressing, bus-data and bus-controls. The lower connector P2 (160 pin DIN-41612-Expanded) and the optional central
connector P0 (95pins har-bus HM Series ) are normally reserved for the custom I/O signals.
connector P0 (95pins har-bus HM Series ) are normally reserved for the custom I/O signals.
Our VME Interface transiction module allows to interface all the I/0pins of the VME-64/P2 connector (row z-a-c-d) and most of the commonly used pins of VME-64/P0 connector.
How it works
Because on the market there are several type of “signals” and hundreds of different VME boards, PMC-modules and I/O interfaces, we have built a selection of “Interface Panels” based on different type of connectors ( push-pull LEMO; D-SUB Harting; and Phoenix contact) that help the users to interface in a very shot time any kind of devices to the VME acquisition boards.
It is the best choice for the top quality simulation/test/mesurement in the industrial environments like Avionic, Naval and Automotive.
On the right table the list of the basic Interface Panels:
| Part Numbers | |
DAS-RTMVME | VME Rear Transition Module to three 68 pin SCSI connectors |
| Specifications | |
Panel size | VME - 6U |
Material | Alluminium alloy 6082 |
Max. Current | 1A |
Max.Voltage | 30V |
I/O Mapping | 1) 64 I/O from RP0 to X0 2) 64 I/O from RP2(ac) to X1 3) 46 I/O from RP2(dz) to X2 |
Compliance | Mech. Standard IEEE P1101.11 |
Certifications | CE - EN55022 - UL1950 |
Related Panel Interfaces | |
DAS-HDIO | High density I/O panel |
DAS-HDIO-RS | High density Serial lines panel |
DAS-HDIO-AR | High density Arinc429 panel |
DAS-HD68DS | High Density internal module - DSUB 25 poles |
DAS-HD68 | High Density internal module- screw terminal |
