DAS-HDIO
High Density I/O Panel
DAS-HDIO is our solution for interface a wide range of electronic devices. Our target is to offer at the simulation environment the possibility of acquire / stimulate the most wide range of signals.
- Analog Input - Analog output - Discrete Input - Discrete Output
- Analog Input - Analog output - Discrete Input - Discrete Output
Versions
We produce three different version:
DAS-HDIO-S-DB25 (1U rack panel with up to 32 I/O signals ) must be used in conjunction with the DAS-RTMVME interface and the 68pin wide cable.
DAS-HDIO-K-DB25 (1U rack panel with up to 32 I/O signals ) must be used in conjunction with the GE-Fanuc VMIC boards that use the "Front SEK-64 connector" and a 64 wire Flat cable to connect the remote I/O signals
DAS-HD68DS is a DIN rail module (up to 32 I/O signals) must be used in conjunction with the DAS-RTMVME interface and the 68pin wide cable.
Conditioning Module
All the digital electronics need data to be presented to the computer in a digital format (i.e. the data have to be digitally conditioned).
We offer a wide range of "conditioning Module" . Up to four (4) modules can be mounted on a DAS-HDIO-x-DB25 and every "Conditioning Module is able to manage eight Signals.
Perfect Labeling
These Panels are made in Anodized Alluminum alloy. Written and logos are made “on demand” and permanently engraved with a laser machine.

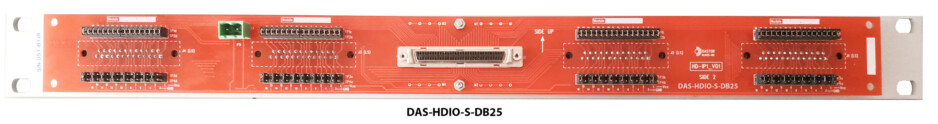

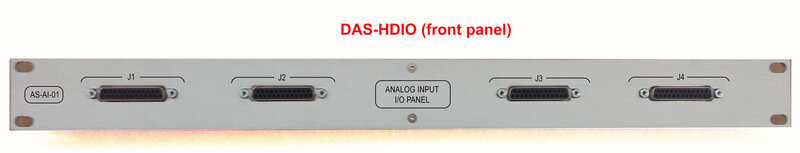

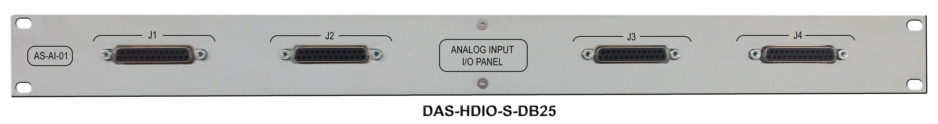

DAS-HDIO-S-DB25
Rackmount 1U High Density Interface Panel with:
- 32 I/O signals throught D-SUB 25 poles
- 68 pin SCSI connector to DAS-RTMVME
- 32 I/O signals throught D-SUB 25 poles
- 68 pin SCSI connector to DAS-RTMVME
470,00€(VAT excl.)
Add

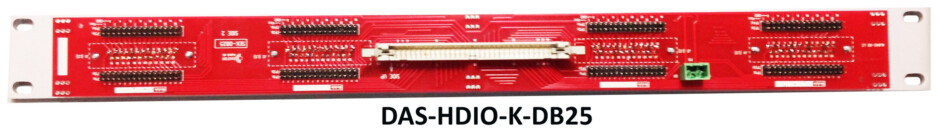

DAS-HDIO-K-DB25
Rackmount 1U High Density Interface Panel with:
- 32 I/O signals throught D-SUB 25 poles
- SEK 64 connector to VME Board
- 32 I/O signals throught D-SUB 25 poles
- SEK 64 connector to VME Board
470,00€(VAT excl.)
Add
DAS-HD68DS
DIN rail mount carrier for multi pourpouse I/O
- 68 pin SCSI connector and cable with cable locks
- 4 D-SUB 25 pin for Input/output signals
- 2x16 row strip pins for signal conditioning modules
- 68 pin SCSI connector and cable with cable locks
- 4 D-SUB 25 pin for Input/output signals
- 2x16 row strip pins for signal conditioning modules
400,00€(VAT excl.)
Add
_______________________________ SIGNAL CONDITIONING MODULE _______________________________

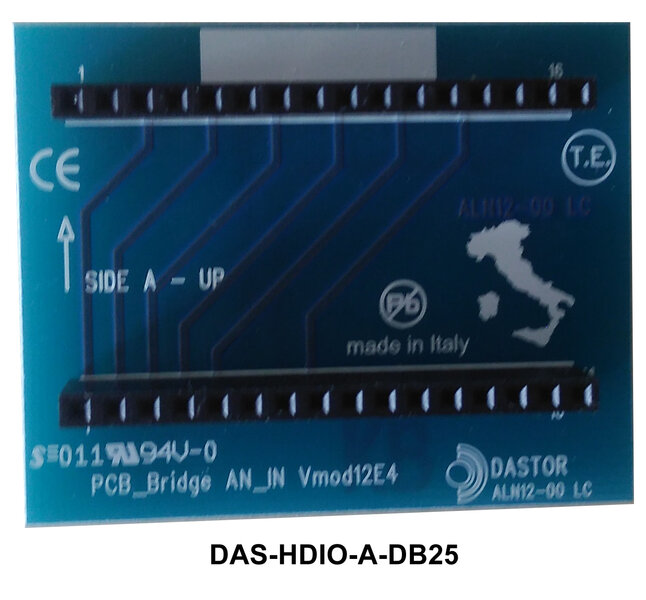

DAS-HDIO-A-DB25
Conditioning module Analog Input
- 8 channels Analog Input Single Ended
- 8 channels Analog Input Single Ended
15,00€(VAT excl.)
Add
DAS-HDIO-E-DB25
Conditioning module. "Bit Inverter" Input pulled-up to 15V.
- Inputs: 8 indipendently insulated channels for signals externally pulled-up to 15V.
- Outputs: 8 "bit inverter" type to drive 28V opto.
- Inputs: 8 indipendently insulated channels for signals externally pulled-up to 15V.
- Outputs: 8 "bit inverter" type to drive 28V opto.
120,00€(VAT excl.)
Add
DAS-HDIO-F-DB25
Conditioning module for Discrete RS422 Input
- Inputs: 8 indipendently insulated channels for signals externally pulled-up to 15V.
- Outputs: 8 "bit inverter" type to drive 28V opto.
- Inputs: 8 indipendently insulated channels for signals externally pulled-up to 15V.
- Outputs: 8 "bit inverter" type to drive 28V opto.
150,00€(VAT excl.)
Add

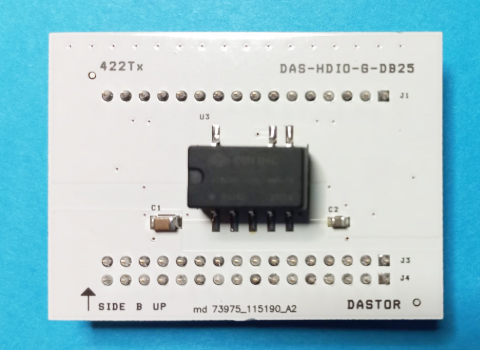

DAS-HDIO-G-DB25
