DAS-IP1553 Interface panel for MIL-STD-1553 avionic bus

DAS-IP1553 is our rackmount solution for MIL-STD-1553. It provide a perfect passthrought for 1553 bus channels that can be used on both redundant 1553 bus (Bus-A and Bus-B).

Perfect Labeling

These Patch Panel are made in Anodized Alluminum alloy. Written and logos are made “on demand” and permanently engraved with a laser machine

Specifications
Pannel size:	19" - 1U (483 x 44,4 x 4mm) 19" - 2U (483 x 88,8 x 4mm)
Material:	Alluminium alloy 6082
Connector	- BJ73 Trompeter
Cable Kit	Connector: Trompeter PL75C-204 Twinaxial Cable : PAN6421 or TWC-78-1

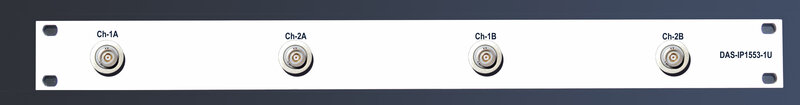

DAS-IP1553-V04

Rackmount 1U Interface Panel MIL-STD-1553 with:
- 4 BJ73 Bulkhead connector

300,00€

Add

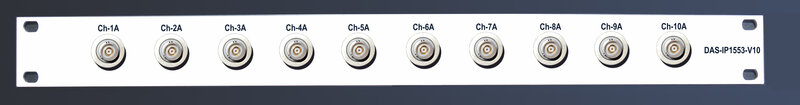

DAS-IP1553-V10

Rackmount 1U Interface Panel MIL-STD-1553 with:
- 10 BJ73 Bulkhead connector

800,00€

Add

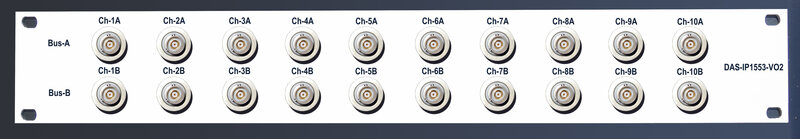

DAS-IP1553-V20

Rackmount 2U Interface Panel MIL-STD-1553 with:
- 20 BJ73 Bulkhead connector

1.600,00€

Add

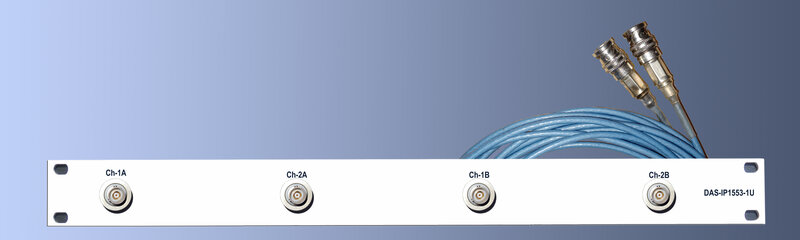

DAS-IP1553-1U

Rackmount 1U Interface Panel MIL-STD-1553 with:
- 4 BJ73 Bulkhead connector
- Cable kit with 8 PL75C-204

800,00€

Add

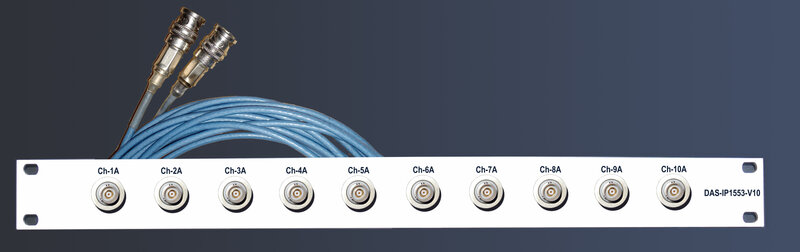

DAS-IP1553-10TC

Rackmount 1U Interface Panel MIL-STD-1553 with:
- 10 BJ73 Bulkhead connector
- 10 cable kit with PL75C-204 connectors

1.600,00€

Add

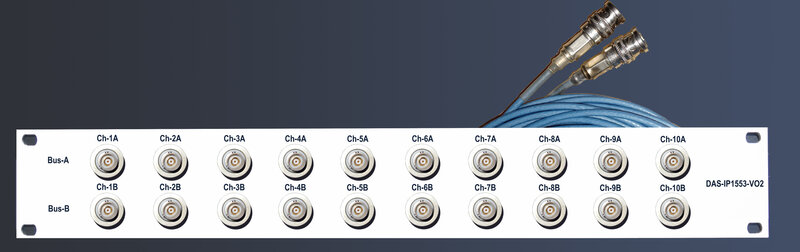

DAS-IP1553-20TC

Rackmount 2U Interface Panel MIL-STD-1553 with:
- 20 BJ73 Bulkhead connector
- 20 cable kit with PL75C-204 connectors

2.900,00€

Add

DAS-CBL-1553-1

MIL-STD-1553 cable with:
- PL75C-204 triax connectors
- 1 mt. cable of PAN6421 or TWC-78-1

100,00€

Add

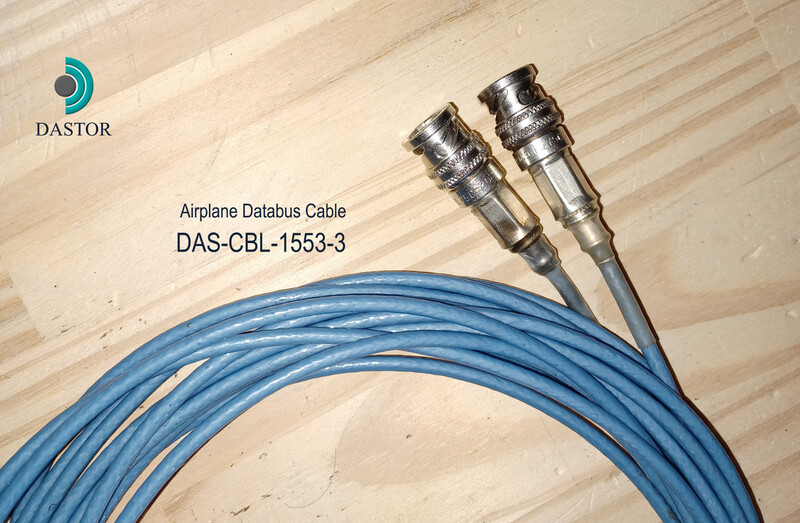

DAS-CBL-1553-3

MIL-STD-1553 cable with:
- PL75C-204 triax connectors
- 3 mt. cable of PAN6421 or TWC-78-1

110,00€

Add
