DAS-PP50-F
PANEL INTERFACES > PATCH PANELS

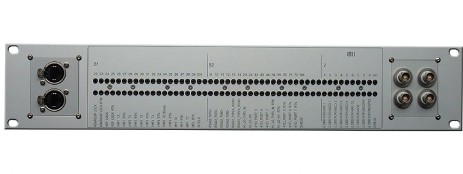

DAS-PP50-F
Patch Panel - 50 separated wire
2 windows for optional connectors
2 windows for optional connectors
DAS-PP50- FA Price: 900 Euro
DAS-PP50- FB Price: 900 Euro
DAS-PP50- FC Price: 900 Euro
DAS-PP50- FD Price: 900 Euro
| Option Description | Part Number | Shop |
1 Ethernet cat.5E option | DAS-OPP-ETH: 60 Euro |  |
2 Ethernet cat.5E option | DAS-OPP-ETH: 90 Euro |  |

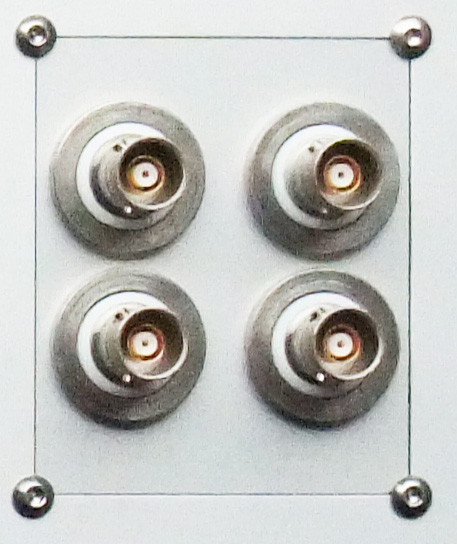

| MIL-STD-1553 option | DAS-OPP-1553: 190 Euro |  |
| USB option: 2 USB neutrik | DAS-OPP-1553: 90 Euro |  |

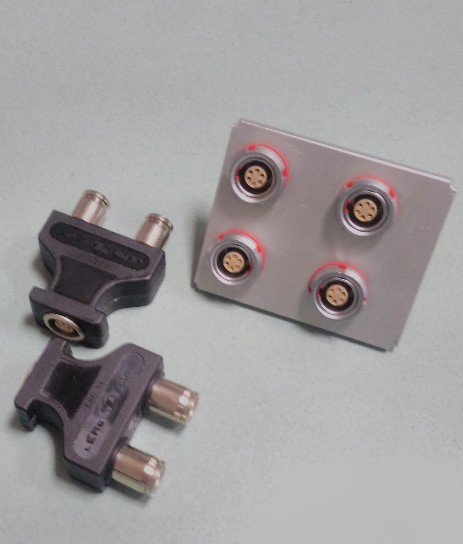

LEMO Serial Bridge Option | DAS-ALN017: 125 Euro |  |
| Ground extension | DAS-ALN016: 50 Euro |  |
DAS-PP50-F is our flexible rackmount solutions that house up to 50 wires and offer the convenience of allowing technicians to quickly connect, test, simulate and change several type of signals.
This solution was created for the avionics requirements but can be used in any laboratory environment.
How it works
Without the front jumper it is nothing more than an interrupted wire. Behind the panel, users will connect the two ends of the threads, one on the top, the other on the botton. The two different type of connectors offer a wide range of possibilities in terms of diameter of the wires and the type of connections.
Perfect Labeling
These Patch Panel are made in Anodized Alluminum alloy. Written and logos are made “on demand” and permanently engraved with a laser machine.
| Part Numbers | |
DAS-PP50-FA | 19” Patch panel with 50 front-jumpers - 2 Windows for optional connectors - 20 male Phoenix connectors 3,81 - 200 female crimp pin for AWG 17-20 |
DAS-PP50-FB | 19” Patch panel with 50 front-jumpers - 2 Windows for optional connectors - 20 male Phoenix connectors 3,81 - 200 female crimp pin for AWG 22-24 |
DAS-PP50-FC | 19” Patch panel with 50 front-jumpers - 2 Windows for optional connectors - 20 male Phoenix connectors 5,08 - 200 female crimp pin for AWG 18 |
DAS-PP50-FD | 19” Patch panel with 50 front-jumpers - 2 Windows for optional connectors - 20 male Phoenix connectors 5,08 - 200 female crimp pin for AWG 14-16 |
| Specifications | |
| Panel size | 19" - 2U (483x88,4x4mm) |
| Material | Alluminium alloy 6082 |
| Max. Current | 12A |
| Max.Voltage | 70V |
| shock | 20G, 11ms, ½ sine |
Certifications | CE - IEC/EN 61010 |
