DAS-8099G
PANEL INTERFACES > BOARDS
DAS-8099G
Price: 870 Euro

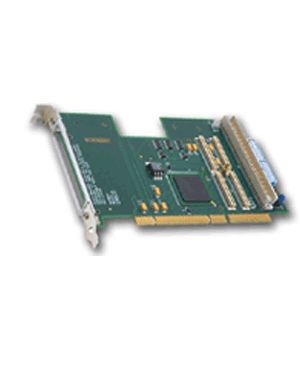

PMC-X To PCI-X Adapter
- Permits delivery of PMC derived applications in a standard PCI or PCI-X environment
- Supports PMC (IEEE 1386) and PMC-X (VITA 39)
- Intel 31154 bridge operates at 33/66MHz (PCI) or 66/100/133MHz PCI-X
- LEDs monitor power supplies and key signals from the PCI bus
- Optional Fan Assembly Part # 8094F
- Selectable 3.3V or 5V PCI bus signaling levels
- RoHS Compliant
| Part Numbers | |
DAS-8099G | PMC-X To PCI-X Adapter With Intel 31154 PCI-PCI-X Bridge, 32/64-Bit - 33/66/100/133Mhz |
| Specifications | |
Carrier board | Supports PMC (IEEE 1386) and PMC-X (VITA 39) |
Cooling | -10/+65°C. |
